Professional punched stainless steel scaffolding ladder plank machine

  • Professional punched stainless steel scaffolding ladder plank machine
  • Professional punched stainless steel scaffolding ladder plank machine
  • Professional punched stainless steel scaffolding ladder plank machine
  • Professional punched stainless steel scaffolding ladder plank machine

Professional punched stainless steel scaffolding ladder plank machine

    Payment Type: L/C,T/T,D/P,D/A
    Terms of Trade: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
    Packaging: as customer requirem
    Productivity: 2-8m/min
    Brand: ZHONGTUO
    Transportation: Ocean,Land,as customer requirem
    Place of Origin: China
    Supply Ability: 30 sets/month
    Certificate: CE, ISO9001

Basic Info

Model No.: CNZT-002

Product Description

Professional punched stainless steel Scaffolding Ladder plank machine

Scaffolding, also called scaffold or staging, is a temporary structure used to support a work crew and materials to aid in the construction, maintenance and repair of buildings, bridges and all other man made structures. Scaffolding is also used in adapted forms for formwork and shoring, grandstand seating, concert stages, access/viewing towers, exhibition stands, ski ramps, half pipes and art projects (quotoed from wiki). Now the metal ladder scaffolding for concrete slab and masonry construction, here are some drawing profile and finsihed product pictures for your reference:

scaffolding 13


Advantage of our

Professional punched stainless steel scaffolding ladder plank machine:

1. Rollforming Mills For Scaffolding Springboards is controlled by PLC control system ,during normal work,it will more security.

2. The basic of Scaffolding Board Making Machine is middle plate,it will be welded and tempering to avoid the distortion.

3.The frame of machine is iron structure,it will tempering.After this process, it will more strong and long life.

4.Transmission structure for the gear box. Each rack has a gear box molding can ensure that equipment over time, high-intensity running, and long service life.

Scaffolding Ladder Plank Machine

Basic information of

Professional punched stainless steel scaffolding ladder plank machine:

1,Working speed :2-8 m/min

2,Material thickness :1.0-1.2mm

3,Control system:PLC

4,Decoiler :5T

5,Punching :one set

6,Main roll forming rollers:16row rollers

7,Roll material:GCR15 Steel after quenching process HRC58-62℃,he chrome plating surface treatment

8,Material of the shaft and the shaft diameter:45# steel processing, shaft diameter is 70mm

9,Main machine power :18.5kw

10,Hydraulic station power:5.5kw

11,Hydraulic pressure:24Mpa

12,Scissors punching material:Cr12Mov,Quenching HRC 58-62℃

13,Length tolerance:3m±1.0mm

14,Voltage :380V, 50HZ,3 phrase

15,driving mode :chain driving mode

16,Machine size :16.5*2.2*1.6m

17,Delivery date :30 working days

Accessories:

1.Easy damaged parts: conk 2 pcs, fuse-link 4 pcs

2. Rubber mat 1 pcs; 3.Bolt spanner 1 pcs

19,Payment terms: Payment: 30% T/T in advance and balance 70% after, Inspection confirmation before shipment.

Delivery: within 45 working days after receipt of deposit


Professional punched stainless steel scaffolding ladder plank machine


Feeding and punching:

Rollforming Mills For Scaffolding Springboards

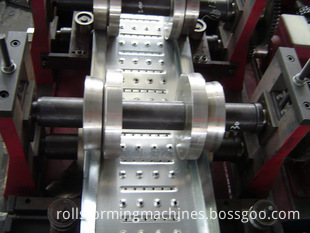

Roll forming for Rollforming Mills For Scaffolding Springboards:

Rollforming Mills For Scaffolding Springboards

Rollforming Mills For Scaffolding Springboards

Cutting part:

Rollforming Mills For Scaffolding Springboards

The final product of Scaffolding Springboards for you reference:

Rollforming Mills For Scaffolding Springboards


Rollforming Mills For Scaffolding Springboards

Zhongtuo Roll Forming Machinery Co., ltd




Cangzhou ZHONGTUO roll forming machinery is a professional manufacturer and exporter which is concerned with the design, development and production of cold roll forming machines. The company cooperates with several production factories and associated enterprises.

Engineers and technicians are rich in experience of designing, developing, and manufacturing of machines. We pay close attention to new trend of technologies. All products comply with international quality standards and are greatly appreciated in markets throughout the world.



roll forming machine company

china roll forming machine manufacturer company

Company Info

  • Company Name: Zhongtuo Roll Forming Machinery Co., ltd
  • Representative: Xu Lianxing
  • Product/Service: roof tile making machine , steel deck roll formin machine , Steel Frame Forming Machine , Welded pipe Making Machine , roller shutter door making machine , stud track roll forming machine
  • Capital (Million US $): 5000000 USD
  • Year Established: 2006
  • Total Annual Sales Volume (Million US $): US$2.5 Million - US$5 Million
  • Export Percentage: 91% - 100%
  • Total Annual Purchase Volume (Million US $): US$2.5 Million - US$5 Million
  • No. of Production Lines: 10
  • No. of R&D Staff: 11 -20 People
  • No. of QC Staff: 5 -10 People
  • OEM Services Provided: yes
  • Factory Size (Sq.meters): 50,000-100,000 square meters
  • Factory Location: Traffic Street, Fuzhuang Industrial Zone, Botou, Cangzhou City, Hebei Province, China.
