combination step extension ladder

Product Description

Contact Informaiton:

Name: Helen

Skype: helenwu007

Tel: 86-13858910487

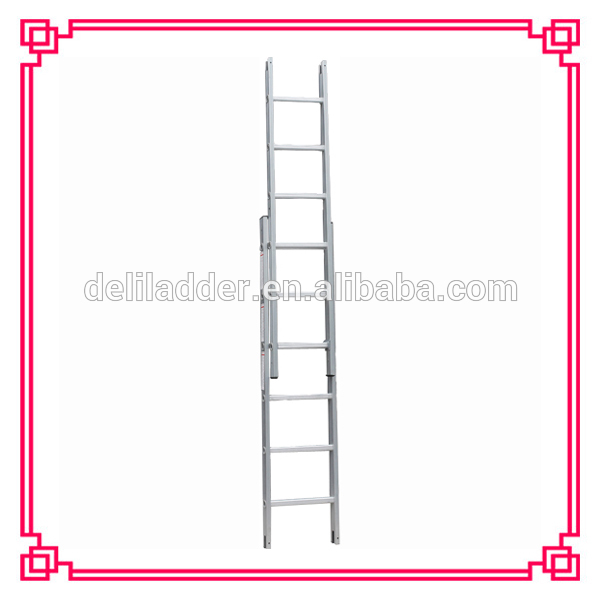

2*6 steps Aluminium Extension Ladder
1. Item No. DLE206
2. Number of rungs 2folds × 6steps
3. Total  steps 12 steps
4. Extention Length 254cm
7. Folded height 170cm
8. Space between two rungs 28cm
9. Material Aluminium alloy(6063A)
10. Thickness 1.2mm
11. Max load 150kg
12. Packing size 170*41*11cm(1pc/package)
13. Packaging Details polybag
14. N.W 6kg
15. G.W 6.2kg
16. Load quantity(20GP/40HQ) 437pcs/1036pcs
17. Optional size

DLE206(2.54M, 2×6 steps), DLE207(3.1M, 2×7 steps),

DLE208(3.66M, 2×8 steps), DLE209(4.22M, 2×9 steps),

DLE210(4.78M, 2×10 steps), DLE211(5.34M, 2×11 steps),

DLE212(5.9M, 2×12 steps),  DLE213(6.46M, 2×13 steps),

DLE214(7.02M, 2×14 steps),







Item No NO. Of Steps A(cm) B(cm) C(cm) D(cm) N.W(kgs) Packing Size(cm) 20GP(pcs) 40HQ(pcs)
DLE206 2*6 170 254 35 41 6 170X41X11(1pc/package)  437 1036
DLE207 2*7 198 310 35 41 6.8 198X41X11(1pc/package)  360  888
DLE208 2*8 226 366 35 41 7.6  226X41X11(1pc/package) 336 769
DLE209 2*9 254 422 35  41 8.4  254X41X11(1pc/package) 282 690
DLE210 2*10 282 478 35  41 9.2  282X41X11(1pc/package) 264 592
DLE211 2*11 310 534 35 41 10  310X41X11(1pc/package) 132 441
DLE212 2*12 338 590 35 41 10.8  338X41X11(1pc/package)



132

441
DLE213 2*13 366 646 35 41 11.6  366X41X11(1pc/package) 132 441
DLE214 2*14 394 702 35 41 12.4  394X41X11(1pc/package) 132 441

Safety First!
Before use the ladders, please read the marking carefully!
Guides 1. Inspect upon receipt and before each use.
2. Always ensure all locking mechanisms are in the locked  position before stepping on it or
applying weight of any kind.
3. The stabilizer bars must be properly and securely fitted before use.
4. Always keep the ladder dry, clean and free of debris and foreign materials. Clean after each use.
5. Always use a firm grip and face ladder whenever possible.
6. Always set up the ladder on a surface that is level, stable and dry.
7. All working parts must be in good working.
Caution 1. DANGER, METAL LADDERS CONDUCT ELECTRICITY.Do not let ladders of any material come in
contact with live electrical wires.
2. Do not operate on uneven or slippery surfaces, this can cause serious injury.
3. Do not use ladder if broken, worn or if exposed to fire or chemical corrosion.
4. Never set up the ladder in front of doors that are not locked.
5. Never use ladder as brace in any way.
6. Never place yourself or allow anyone to stand or work under scaffolding or ladder while in use.
7. Do not stand on ladder while releasing the locking mechanisms.
8. Do not attempt to switch ladder positions while on the ladder.
9. To protect children, do not leave ladder set-up and unattended.

Add a Stablizer in ladder:

other aluminum types we supply:





Please contact our after-sales service department in time within 30days after you received the cargo
Tel: 0086-579-87551010 Time: 9:00 a.m.-5:00 p.m. Mon-Fri(UTC+08:00)
E-Mail:
sales1 @deliladder.com
Time: 7D*24H
Skype:
emilylhlh
Time: 7D*24H
Process: Please provide the copy of sales contract and describe the problems appeare.
Problems confirmation:
Slight problem: Please send the proof to our after-sales department, we will reply within two days.
Serious problem:
A We will dispatch our quality and problems appraisers to make a confirmation.
B Have a negotiation of the compensation and sign agreements.
C Our after-sales department will perform the duties as the agreements.






Contact us if you need more details on Combination Step Extension Ladder. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Extension Ladder、Step Extension Ladder. If these products fail to match your need, please contact us and we would like to provide relevant information.
